6" (150mm) Rotary Table with 3 Slots & Steel Dividing Plates - Includes Double Bolt Tailstock for Precision Milling, Drilling & Engineering Projects - Perfect for Metalworking, CNC Machining & DIY Workshop Tools

$164.99

$299.99

Safe 45%

$164.99

$299.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

7 people viewing this product right now!

SKU: 44039397

Guranteed safe checkout

Description

"A great combo of HV6 3 slots Rotary table with double bolt tailstock and dividing plates For Milling Machine: HV6 Rotary Table: 1. HV6 Rotary Table Diameter :150 mm (6"") Overall Height : 80 mm ( 3-1/4"") Centre Height in Vertical Position: 105 mm Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4 Degrees. Table Graduated 360 Degrees, Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds 2. Centre Bore of the Table: 2 MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position. Steel Dividing Plates: 1. A set of Steel Dividing Plates for Indexing with all required Accessories 2. Designed to Fit our HV4 & HV6 Rotary Tables. (Worm-Gear Ratio-90: 1) 3. Diameter of the Plates is 100 mm. Centre Hole of the Plate is 21 mm .Thickness 7 mm Double Bolt Tailstock: 1. Its made of good Quality of Cast Iron. 2. Height is adjustable from 80 mm to 110 mm, 3. It is used on our HV4 HV6 Rotary Table. 4. It is used when between centre work is required. 5. These are adjustable for different heights Having fine feed centre point and the centre tip is hardened and Ground."

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

A great combo of HV6 3 slots Rotary table with double bolt tailstock and dividing plates For Milling Machine

HV6 Rotary Table HV6 Rotary Table Diameter 150 mm (6"") Overall Height 80 mm ( 3-1/4"") Centre Height in Vertical Position 105 mm Worm- Gear Ratio- 190, which means that the 1 handle rotation shall turn the table by 4 Degrees. Table Graduated 360 Degrees, Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds || Centre Bore of the Table 2 MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position.

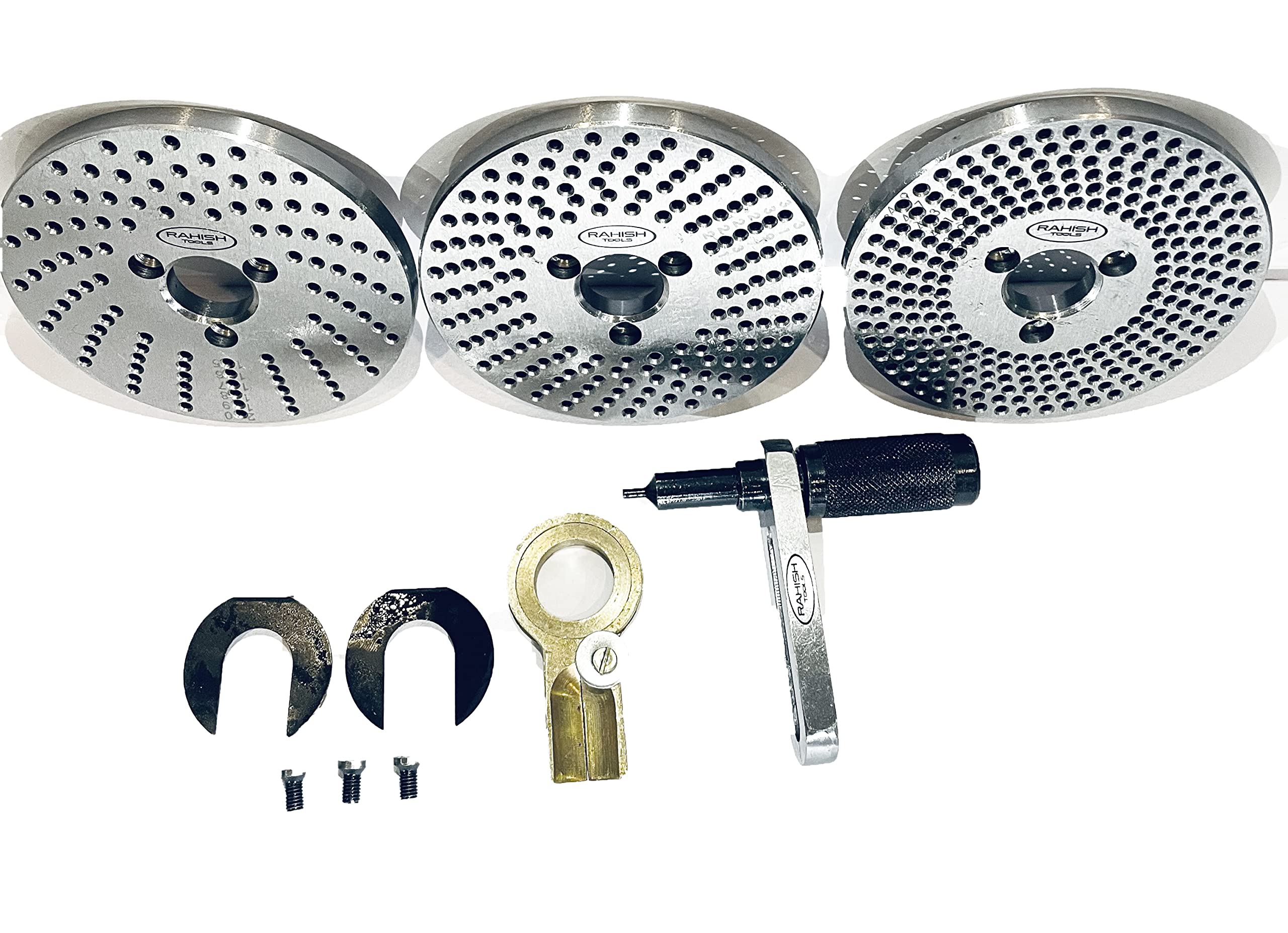

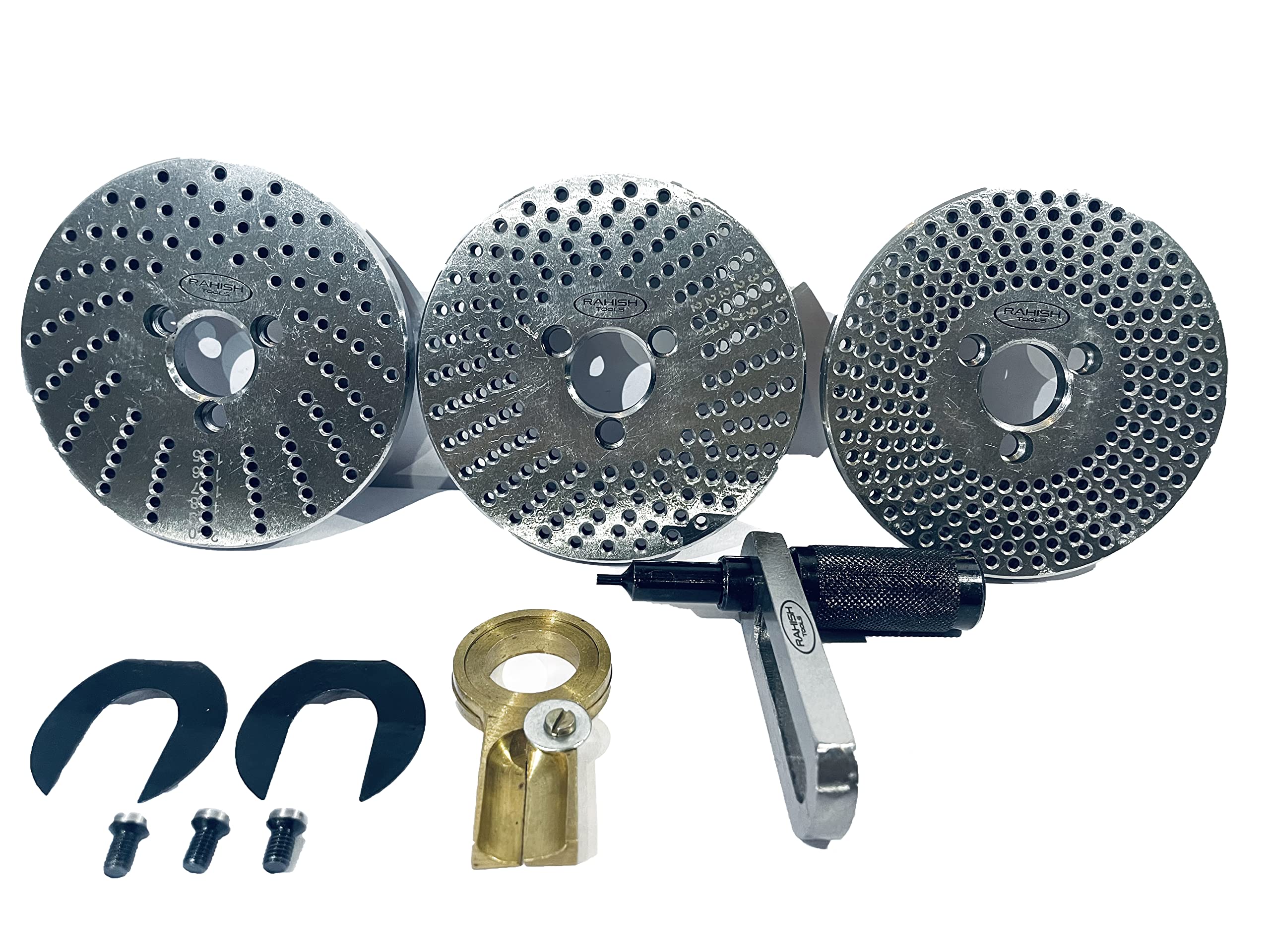

A set of Steel Dividing Plates for Indexing with all required Accessories || Designed to Fit our HV4 & HV6 Rotary Tables. (Worm-Gear Ratio-90 1) || Designed to Fit our HV4 & HV6 Rotary Tables. (Worm-Gear Ratio-90 1) || Diameter of the Plates is 100 mm. Centre Hole of the Plate is 21 mm. Thickness 7 mm

Its made of good Quality of Cast Iron. || Height is adjustable from 80 mm to 110 mm || It is used on our HV4 HV6 Rotary Table.

It is used when between centre work is required. || These are adjustable for different heights Having fine feed centre point and the centre tip is hardened and Ground.

Reviews

*****

Verified Buyer

My HV6 was absolutely full of metal shavings that were never cleaned out before the unit was assembled. It required complete disassembly (I mean complete) and cleaning with solvent. Then re grease and re assemble. If you are not willing to do this then buy something else.
